You can download instruction guides for
our products here: |
USE PASSWORD "www.safe-n-sound1.com"
to open the documents
SEE BELOW FOR HELP WITH MOUNTING
THE MUTE BUTTON.
Beltronics Direct Cords or Mute Button Cords
Beltronics Hidden Mirror Direct Cords
Escort Direct Cords or Mute Button Cords
Escort Hidden Mirror Direct Cords
Valentine Direct Cords or Mute Button Cords
Valentine Hidden Mirror Direct Cords
Valentine Hard-Wire Adapter Splitter
Valentine
Mute Button Plug
Cobra Direct Cords or Mute Button Cords
Cobra Hidden Mirror Direct Cords
Whistler Direct Cords or Mute Button Cords
Whistler Hidden Mirror Direct Cords
|
Some information on how to
install your mute button: |
FLAT MUTE BUTTON:
-
Normally
the cord for the mute button is about 4 feet long. Figure out
where you would like to mount your mute button. The flat mute
button has strong mounting tape on the back side of it. Mounting
on a smooth surface would be ideal.
-
Clean
the surface with rubbing alcohol or some sort of cleaning agent.
Let the surface dry, peel the backing off of the mounting tap and
apply pressure for a few seconds so the mounting tape will adhere
well.
ROUND MUTE BUTTON:
-
Normally
the cord for the mute button is about 4 feet long. Figure out
where you would like to mount your mute button. The round mute
button needs a hole that is approximately 1/4" or 6.5mm to mount.
Try to test drill a hole onto an extra piece of plastic or wood that
is not needed to make sure the hole is sufficient.
-
Make
sure the chosen mounting location is either 1/8" or 2.5mm thickness or
less. Round mute button will not screw into a hole if the
mounting surface is any thicker.
-
Unscrew
the nut from the round mute button. Place the round mute button
through the hole from behind with the lock washer on it or after the
mounting hole. The lock washer is the round washer with the slit
in it, it is slightly curved up from each end. The lock washer
is needed so the nut will not loosen from vibration. Hold the
round mute button with one hand and hand tighten the nut onto the
round mute button on the front side of the mounting hole.
Finally tighten with a pair of needle nose pliers just until the lock
washer flattens.
|
Helpful hints for installing one of our
Mirror Cords: |
 |

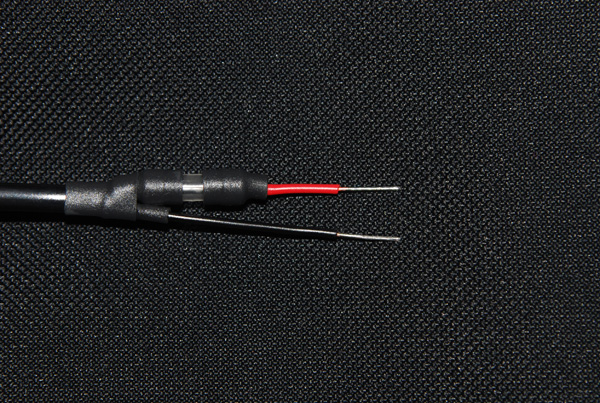

This is a pictures
of how the leads on your mirror cord will come in the package. |
 |

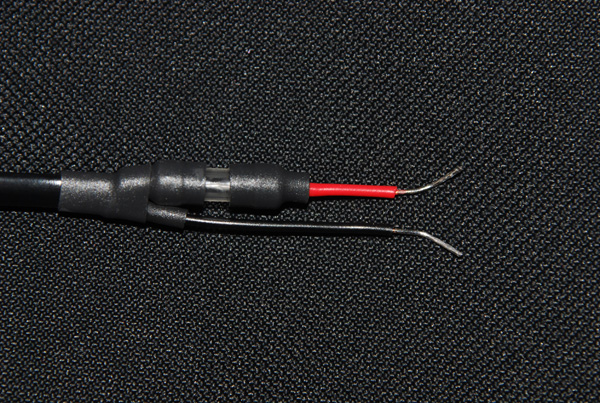

If you are
installing into a into your car's rear view mirror plug and the
leads do not have a good connection, you might get a better
outcome if you slightly bend the leads. |
 |

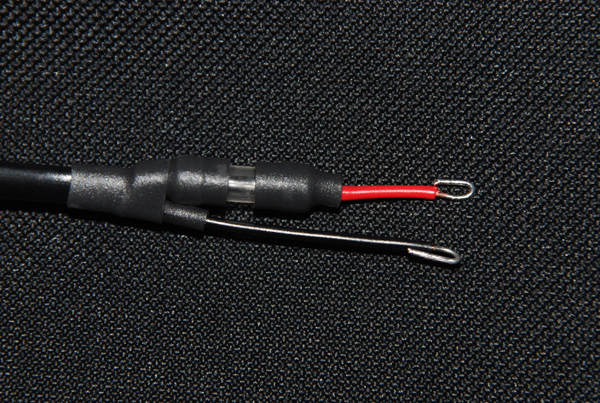

If your car's rear
view mirror power plug has big slots, you might have an even
better connection if you fully bend the leads to fit into the
power plug slots of your car's rear view mirror. |
Both cords normally come in 12inch lengths, but can
be customized to any length you wish.
This is a comparison of shot of our Stealth Mirror Cord on the left and our
Hidden Mirror Cord on the right.
|
See how to use a mini blade fuse tap
below: |
