ESCORT DIRECT WIRE CORD w/ FLAT MUTE BUTTON







Quantities are limited.  No one else has these, be the first!

New with Detailed instructions, double sided mounting tape, wire ties to make your installation neat



The Direct Cord with Flat MUTE Button accessory is a unique power cord with a convenient MUTE BUTTON right within arms reach!



Tired of dangling power cords?  Our direct cords eliminate the bulky dangling power cords that hang over your dashboard and over your rearview mirror.

Our instructions are very detailed and installation is very simple.

We usually ship the same day so you get your order with lightning fast shipping!





What is a Direct Cord with Flat MUTE button?

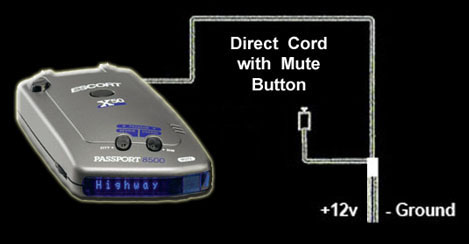

The Direct Wire Cord with Flat MUTE button is an optional accessory that allows you to connect your radar detector directly to your fuse block or other 12-volt source (leaving your lighter socket free for other uses) and provides a MUTE button to be placed closer to you.



The Direct Cord with Flat MUTE button is approximately 8 feet long, with the MUTE button on a cord that about 4 feet long and connected at the built-in FUSED end of the cord so you can place it within arms reach.



It's the perfect addition for any car when reaching the detector's mute button on the windshield is a stretch.

Normally comes with a T - Tap Direct Cord Tap to connect to a power wire source like below.

Just wrap the t-tap onto the wire and pinch with a pair of pliers, then you just connect the red wire to the t-tap.



Wrap t- tap onto wire and squeeze with pliers



Insert connector onto the t-tap for power



Direct Cord Tap     Direct Cord Fuse Tap



1.  Blade Fuse Tap Direct Cord Tap to connect to a blade fuse Direct Cord Tap in the fuse box

2.  Mini Blade Fuse Tap Direct Cord Tap to connect to a mini blade fuse Direct Cord Tap in the fuse box.

Here is a comparison of the blade fuse on the left and the mini blade fuse on the right

Now you can wire directly to your fuse box and eliminate dangling power cords.



Our power cords will allow your radar detector to be hard wired to your vehicle very easily.  If you do change vehicles, simply unplug the red wire from the T-tap connector or the Fuse tap, and unhook the black ground wire.




This kit will work on the below detectors that uses the "Modular" type power plug.

Escort models:

9500i GPS, 9500i, 9500ix,
C65,
Redline,
Solo S2, Solo S3
Passport 8500 X50 Blue or Red, Passport 8500, Passport 7500, Passport 6800
Passport iQ

Passport Max
SC55
SmartRadar








FLAT  MUTE  BUTTON:

  1. Normally the cord for the mute button is about 4 feet long.  Figure out where you would like to mount your mute button.  The flat mute button has strong mounting tape on the back side of it.  Mounting on a smooth surface would be ideal.

  2. Clean the surface with rubbing alcohol or some sort of cleaning agent.  Let the surface dry, peel the backing off of the mounting tap and apply pressure for a few seconds so the mounting tape will adhere well.



Did You Know?

You could also add (1)ONE L.E.D. for your Direct Cord with Mute Button.  The L.E.D. turns on when your radar detector is on, turns off when your radar detector is off and blinks when in alert mode.  Comes on a four foot cord so you can place it almost anywhere.  Order with the Mute Button Cord and we will install it on the cord for you.

Choice of either:

Blue L.E.D. Blue L.E.D. $5.00

Red L.E.D. Red L.E.D. $5.00

OR You could also add (2)TWO L.E.D. for your Direct Cord with Mute Button.

The power L.E.D. turns on when your radar detector is on, turns off when your radar detector is off.

The alert L.E.D. blinks when in alert mode and is off when not in use.

Comes on a four foot cord (for each L.E.D.) so you can place it almost anywhere.

Order with the Mute Button Cord and we will install it on the cord for you.

Blue L.E.D. Blue alert L.E.D.  and Red L.E.D. Red power L.E.D. for $10.00

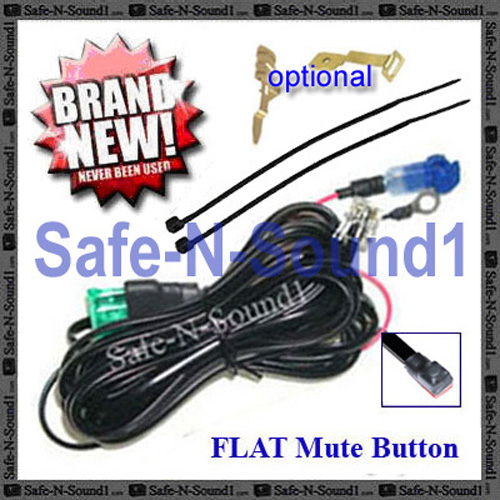

What's included?

New Direct Cord with built-in FUSE and Flat Mute Button kit

Detailed instructions to make your installation a breeze

Strong double sided mounting tape for the flat mute button

Wire ties to make your installation neat

Normally comes with a T - Tap Direct Cord Tap to connect to a power wire source.

If you need a Fuse tap, just let us know which one you would like and we'll replace the T-Tap in your order.

1.  Blade Fuse Tap Direct Cord Tap or a

2.  Mini Blade Fuse Tap Direct Cord Tap to connect to fuse in the fuse box very easily.

Make sure you get a 1 year limited warranty at no charge.

Delivery Confirmation to track your order. (available in most cases)

Price:  $15.99

Add LED(s) Option:
Power Tap Option:
Additional comments
